Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536

Name: Light Weight Led Video Curtain Rental 125 Pixel Pitch SMD3528 Gray Scale 65536
Brand: Vios
Price: 1 USD

Wholesale Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536 from china suppliers

Brand Name : Vios

Model Number : P 12.5

Certification : UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA

Place of Origin : China

MOQ : 1 Piece / 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA

Supply Ability : 5000 Square/one month

Delivery Time : 7-15days

Packaging Details : Carton box / Flight case / Wooden box

Gray scale : 65536

Working humidity : 10% ~ 90%

Effectivce Communication : Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M

Life Span : 100,000 hours

Working temperature : -20ºC~+50ºC±10%

temperature : -20ºC~+50ºC±10% Brightness : >2500cd/sq.m

Size of cabinet : 400mm x 800mm x 60mm

LED component : SMD3528

Contact Now

Product description:

Long view distance and good uniformity;
Aluminum cabinets ensure light weight and lasting;
High lighting penetrated design ensure good ventilation and good heat dissipation ；
Ultra light & thin;
Front/back serviceable without tools;
Can be fixed install or hung for rental, packed with flight case, good protection and easy to move;
Super thin aluminum cabinet and curtain design minimize cabinet weight,only 10kgs each;
Can be many different abnormal shapes with magnets and custom-made frames；
15% transparent rate, ensure the light- through, smoke-through, sound-through;
SMD led encapsulation confirm wide view angle, and big pixel pitch ensure the long view distance.

Parameter:

P12.5 Indoor full Color LED Mesh Screen Specification
Pixel pitch	12.5mm
Pixel Configuration	1R1G1B
LED component	SMD3528
Size of module	200mm x 400mm
Resolution of module	16x32
Size of cabinet	400mm x 800mm x 60mm
Resolution of cabinet	32x64
Material of Cabinet	Aluminum profile
Weight of Cabinet	<10KGS
Brightness	>2500cd/sq.m
Density	6400dots/sq.m
Best viewing angle	140 /140
Best viewing distance	10-100M
Maximum power consumption	<500W/sq.m
Average power consumption	<220W/sq.m
Driving method	1/8 Scan
Control method	Synchronization
Gray scale	65536
Colors	256 x 256 x 256
Color temperature	3200-9300k
Uniformity	97%
Working voltage	AC220V/110V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 90%
MTBF	10,000 hours
Frame frequence	50/60Hz
Refresh frequence	>1500Hz
IP grade	IP31
Life Span	100,000 hours
Data transafer method	RJ45
Pratical standard	CCC TUV-CE ETL etc.
Effectivce Communication	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)	Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Why choose us:

On time delivery + patient after-sales service;
Top quality + reasonable price + patient after-sales service;
100% QC inspection before shipping;
CE,RoHS,FCC, ISO9001;
Free training is provided for our customers;
Our products are the CE certified, ROHS compliant, FCC identified;

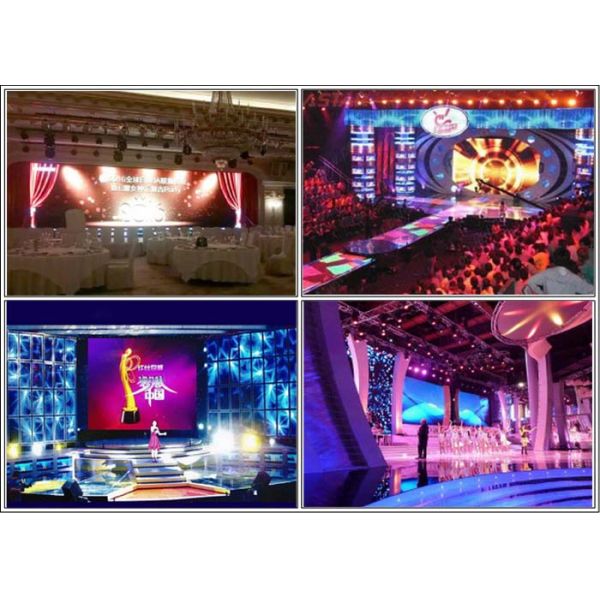

Project case:
