CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle

Product Categories

Shenzhen Vios Electronic Technology Co., Ltd

Contact Now

Name: CP1531D LED Grille Screen Outdoor Led Advertising Screens 120120 View Angle
Brand: Vios
Price: 1 USD

Brand Name : Vios

Model Number : 16

Certification : UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA

Place of Origin : China

MOQ : 1 Piece / 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA

Supply Ability : 5000pcs/one month

Delivery Time : 7-15days

Packaging Details : Carton box / Flight case / Wooden box

Driving Mode : 1/4 scan

View Angle(H/V) : 120/120°

Cabinet Weight : 15 kg

IP Rating : IP43

Pixel Density : 3906 Dots/sq.m

Pixel Pitch : 16 mm

Operation Temperature : -20~+40 ºC

Cabinet Material : Aluminum

Contact Now

P16 indoor LED Mesh Curtain display full color IP43 grade 1/4 scan screen panel

Product description:

Made with Aluminum material, light and thin, less than 70mm thickness;
Slim Aluminum Cabinet,light weight, easy to move and portable, and quick to assemble and dismantle by hands;
Independent driving circuit, equiped slim power supply, no fans no noise,good evironment protection;
Fast locks and aviation plugs structure for install and dismantle conveniently and easily；
With customized panel size,easy for different sizes and combined randomly,better for rental use with different screen sizes;
Multifunctional indoor & outdoor mesh LED ;
High quality lighting parts with special PCB Board design, confirm good display and long life span;
Flexible modules can be many different abnormal shapes with magnets and custom-made frames;
Widely used for commercial led display, stage led display, rental led display,advertising led display, message board etc;
high drafty: no air conditioning fan, cost savings;

Parameter:

P16 Indoor Full Color LED Curtain Main Parameters
Visual Characteristics	Unit	Value
Pixel Pitch	mm	16
Pixel Density	Dots/sq.m	3906
Pixel Configuration		SMD3528
Cabinet Resolution	dots	64×48
Refresh Rate	Hz	≥1200
View Angle(H/V)	°	120/120
Brightness	nits	≥1000
Gray Scale	Bit	687Million
IP Rating		43
Power Consumption(Max/Avg)	W/sq.m	400/150
Input Voltage(AC)	V	110~220
Modular Characteristics
Cabinet Size(W×H×D)	mm	1024×768×36
Cabinet Material		Aluminum
Cabinet Weight	Kg	15
Module Size(W×H)	mm	256×256
Environment
Operation Temperature	ºC	-20~+40
Operating Humidity		10%~90%
Driving Mode		1/4 Scan
Control Distance	Cat 5E <100m,Single mode fiber<10Km
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Why choose us:

We have competitive price;
Excellent R&D team,lower the cost and assure you quality goods;
attractive price!
If you have any urgent questions, pls contact me without hesitation;
We are Professional manufactory of LED Display for more than 7 years in Shenzhen China.We have 9000 square meters of production base, 200 employees, enough for any orders;
Quick delivery: 10-25 working days;
CE,RoHS,FCC certification;

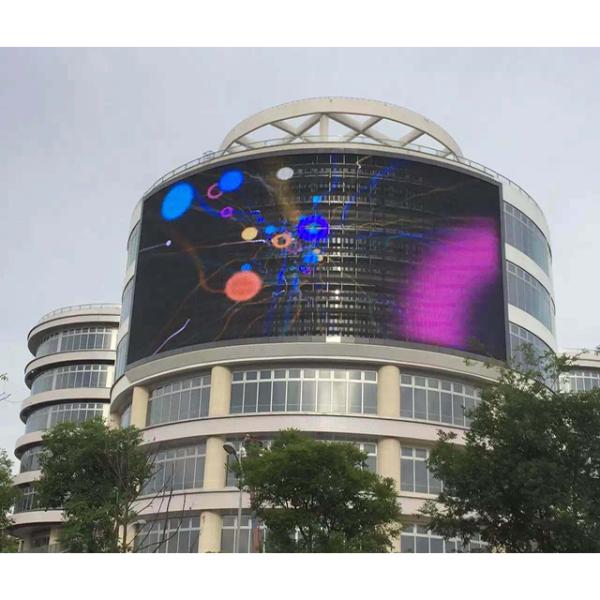

Project case:
